BD LH-0031YN - SafeStep® Huber Infusion Set, 20 Gauge - 1/Each, 25/Case
This product requires a Pharmacy or Medical/Dental License on file with us to complete your order - please contact us or email to us
The BD SafeStep Huber infusion set has a 20 gauge, 3/4 inch right angle non-coring Huber needle with a passive safety clip. It is sterile and has a Y-site port.
This product can be found in our Diagnostic & Medical Supplies -> IV Therapy -> Infusion Sets section.
- SKU
- 100-683089SV
Description / BD LH-0031YN - SafeStep® Huber Infusion Set, 20 Gauge - 1/Each, 25/Case

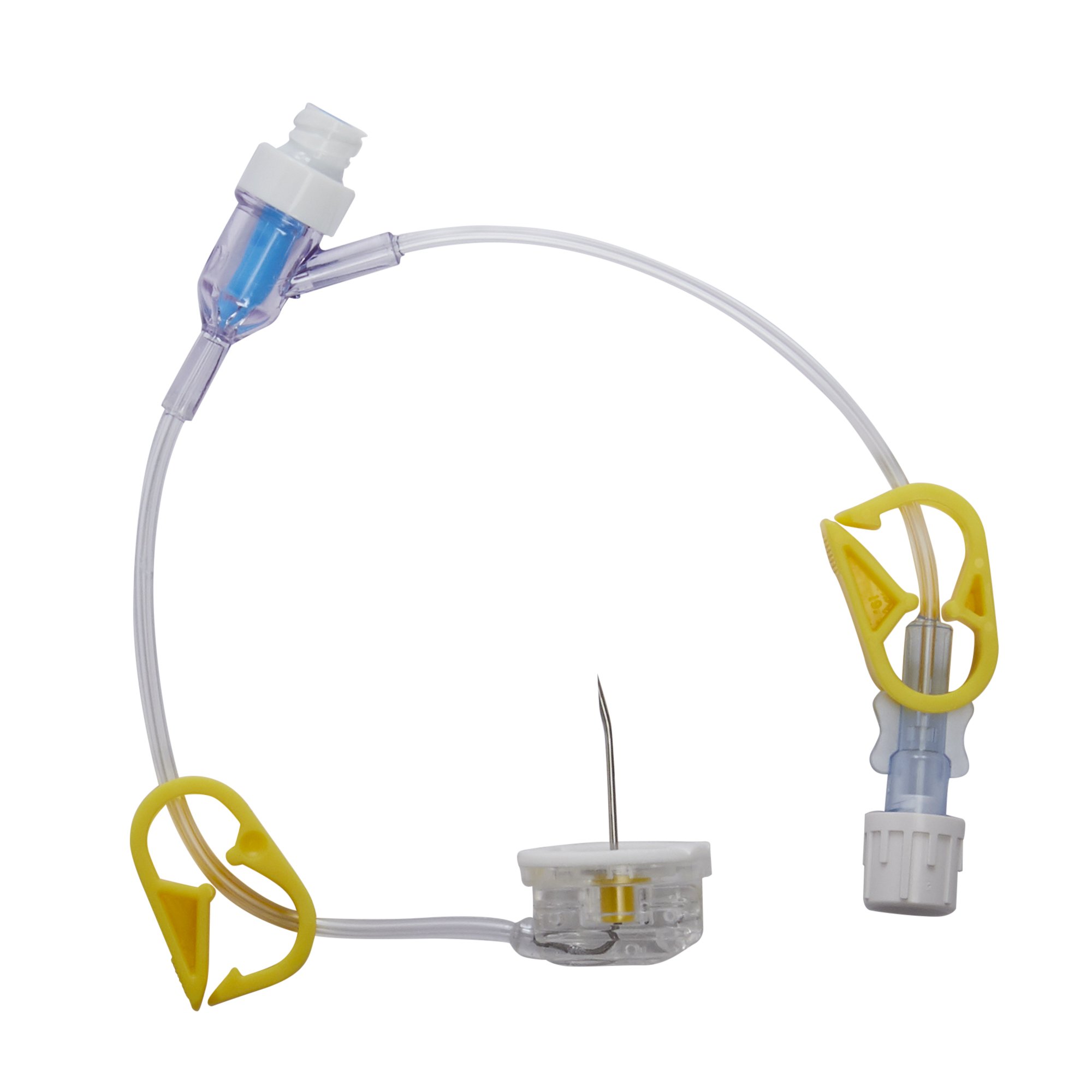

The BD SafeStep Huber infusion set is a sterile set built around a right angle, non-coring Huber needle, the type of needle used to access an implanted subcutaneous port. The needle is 20 gauge and 3/4 inch long. A passive safety mechanism clip is part of the design.
- Right angle non-coring Huber needle with a passive safety mechanism clip
- Hub grip and base plate are part of the needle design
- DEHP-free extension set with an on-off clamp
- Color-coded female luer lock connector
- Intended to provide implanted subcutaneous port access
- Used in conjunction with IV administration of chemotherapy and other injectable drugs, and/or to withdraw blood
- Gauge: 20 Gauge
- Needle length: 3/4 Inch
- Needle material: stainless steel
- Hub type: low profile hub
- Port type: Y-site port
- Priming volume: 0.7 mL
- Safety feature: sliding safety needle
- Tubing type: NonDEHP, PVC tubing
- Sterile

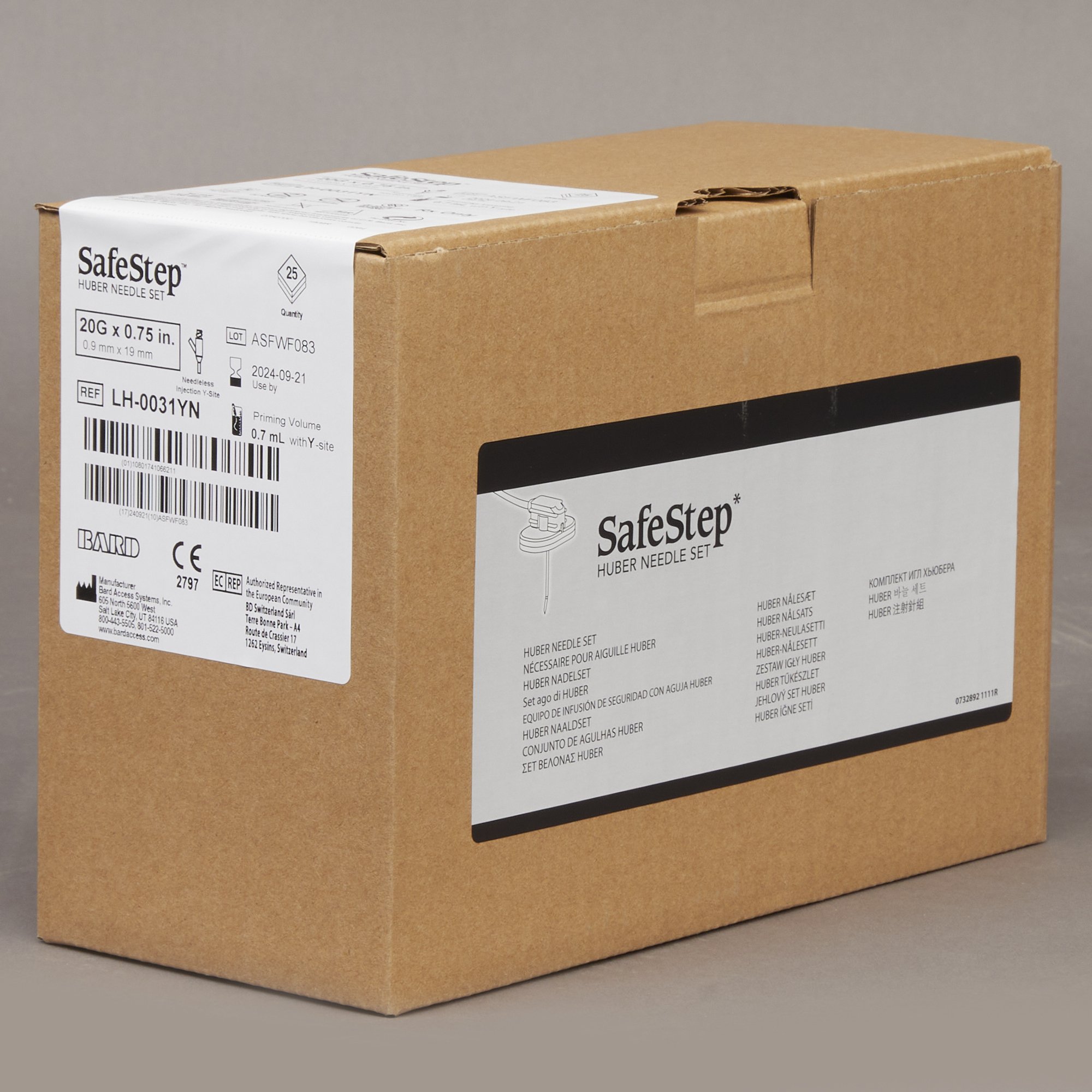

- Sold as 1 each or 25 per case
Check that the 20 gauge size and 3/4 inch needle length match your port access needs before ordering.
More Information
| Manufacturer Item Number | LH-0031YN |
|---|---|
| Manufacturer Name | BD |
| Manufacturer Number | LH-0031YN |
| Application | Huber Infusion Set |
| Brand Or Series | SafeStep® |
| Qty Per Unit of Measure | 25 |
| Sterility | Sterile |
| Safety Feature | Sliding Safety Needle |
| Needle Material | Stainless Steel Needle |
| Priming Volume | 0.7 mL Priming Volume |
| Gauge | 20 Gauge |
| Needle Length | 3/4 Inch |
| Hub Type | Low Profile Hub |
| Port Type | Y-Site Port |
| Tubing Type | NonDEHP, PVC Tubing |
| Needle Style | Right Angle Needle |
More in This Series
| Product | Pack | Gauge | Needle Length | Priming Volume |
|---|---|---|---|---|
| BD LH-0031YN - SafeStep® Huber Infusion Set, 20 Gauge - 1/Each, 25/Case (this item) | 25/CS | 20 Gauge | 3/4 Inch | 0.7 mL Priming Volume |
| BD LH-0030 - SafeStep® Huber Infusion Set - 1/Each, 25/Case | 25/CS | 22 Gauge | 1 Inch | 0.3 mL Priming Volume |
| BD LH-0031 - SafeStep® Huber Infusion Set - 1/Each, 25/Case | 25/CS | 20 Gauge | 3/4 Inch | 0.3 mL Priming Volume |
| BD LH-0033 - SafeStep® Huber Infusion Set - 1/Each, 25/Case | 25/CS | 19 Gauge | 3/4 Inch | 0.3 mL Priming Volume |
| BD LH-0035 - SafeStep® Huber Infusion Set - 1/Each, 25/Case | 25/CS | 22 Gauge | 1/2 Inch | 0.7 mL Priming Volume |
| BD LH-0035YN - Huber Infusion Set, 22 Gauge, 1/2 in, Y-Site Port, Sliding Safety Needle - 25/Pack | 25/PK | 22 Gauge | 1/2 Inch | 0.7 mL Priming Volume |
| BD LH-0037 - SafeStep® Huber Infusion Set - 1/Each, 25/Case | 25/CS | 20 Gauge | 1/2 Inch | 0.3 mL Priming Volume |
